- Place of Origin: guangzhou
- Brand Name: zhongkai package
- Model Number: ZK-YP60

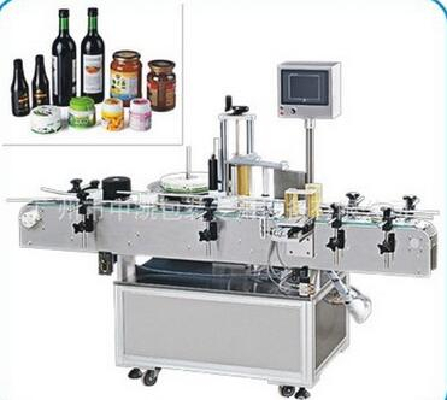

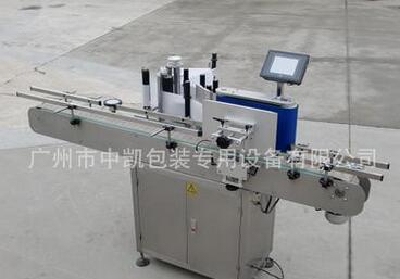

Round bottle labeling machine applicable to the pharmaceutical, food, daily chemical industries such as round bottle labeling, posted a full week labeling and semi circle labeling. Can be equipped with automatic turntable molding machine, can be directly connected with the front end of the production line, automatic bottle feeding into the labeling machine, increase efficiency. Can be optional configuration ribbon code labeling machine, online to print production date and batch number, reduce the bottle packaging process, improve production efficiency.
It is suitable for a wide range, can meet the needs of the whole week round bottle labeling or semi circle labeling, labeling switching between the bottle is simple, easy to adjust;
] label overlap is high, marked with a bypass the corrective mechanism, marked with a deflected and labeling site x/y/z three direction and inclination of a total of eight degrees of freedom can adjust, no dead angle, coincident labeling is high;
The labeling quality, use of standard spring cover belt, labeling smooth, no wrinkles, improve packaging quality;
The application of flexible, bottle standing labeling, automatic bottle function, can be stand-alone production, can also be connected with production line;
] intelligent control, automatic photoelectric tracking, with no labeling, no standard automatic calibration and label automatic detection function, prevent leakage and label waste paste;
High - stability, Panasonic Songxia PLC touch screen and Panasonic needle eye Germany Leuze label electric eye is composed of advanced electronic control system, support equipment 7 * 24 hours of operation.
The simple adjustment, speed, transmission speed, stepless speed sub bottle, adjusted according to need;
] durable, using three lever adjustment mechanism, make full use of the stability of the triangle, the machine is durable. The stainless steel and high alloy manufacture, which meets the requirement of GMP production.
Working principle：
The core principle of work: the bottle distributing mechanism will separate product, sensor detection to products through returned signal to labeling control system, in the appropriate position control system control motor and sent to a label and is attached in the product to be the label position, the product flows through the overlying calibration device, covering standard belt drives the rotation of the product label has been rolling cover and a label affixed attached action completed.
* operating procedure: put the product (can connect line) - > product line (device automatically realized) - > product range - > Product Detection - Labeling - > cover label - collection has been labeling products.
The maximum width of the label: label 130mm in length: 10-300 conveyor belt width: 101.6mm bottle diameter (maximum):110mm roll diameter (maximum):350mm inner diameter of paper roll: 76mm labeling speed: 20-50 bottles / machine weight: 350kgs dimensions: (L) 2200* (W) 1200* (H) 1200mm
